Zebra ZD411 Label Calibration

How To Calibrate and Align Labels on Zebra ZD411 Printer

1. Power on the printer using the on button on the printer.
2. Open the lid of the printer by pressing on the yellow levels on the left and right side of the printer. Make sure the label roll is properly inserted.

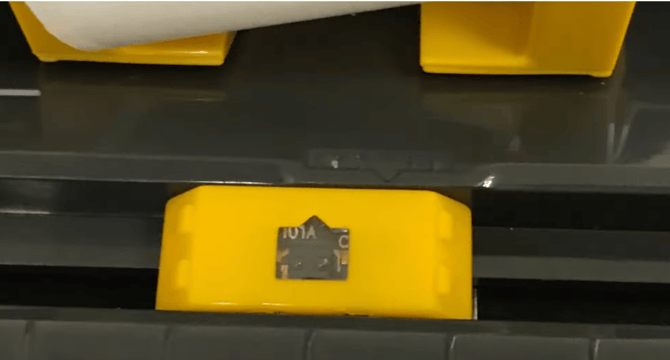

3. Make sure the yellow movable sensor is aligned with the center of the printer. If not, slide left or right until adjusted.

4. Close the printer lid.
5. Hold down the pause and cancel button until labels start coming out of the printer.

If your printer is still not printing correctly, it may need to remeasure the label dimensions.  Watch this video for step-by-step instructions.

__________________________________________________________________________________________

If your labels are printing with blank sections or formatted incorrectly, refer to the following:

> Blank Label / Calibration Support Guide #1

• Skipping blank labels when printing

 > Blank Label Calibration Support Guide #2

• Printer Calibration

Tip: Ensure you're using the correct label template for your printer.

__________________________________________________________________________________________

If further assistance is needed, please contact PathSpot Support.

• support@pathspottech.com
• 718-550-0040

If there is a suspected hardware issue Zebra printer support will likely need to be included.

• Zebra Printer Support
