Care Guide for PathSpot Temperature Sensors

Your PathSpot LoRaWAN sensors are designed to withstand back-of-house operations and demanding unit conditions. However, like all electronic devices, following a few simple care guidelines will help ensure your sensor performs reliably and last for their expected shelf life (3-5 years)

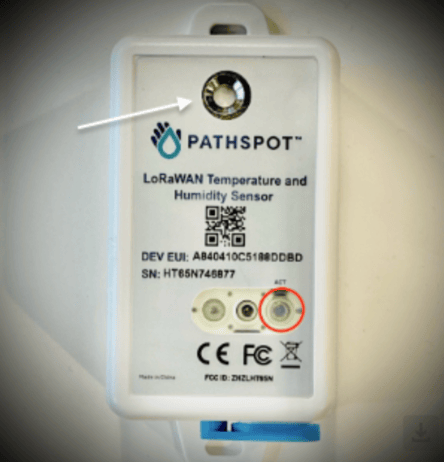

Screenshot 2025-07-22 at 11.16.00 AM

Sensor Care & Installation Guidelines

1. Avoid Power Washing

High-pressure water can damage sensitive components, keep the sensor dry.

2. Do Not Submerge

Water intrusion can compromise the sensor's integrity and performance.  Most important to keep dry is the humidity sensor at the top of the sensor pointed at with the white arrow.

3. Physical Protection

Place sensors in areas safe from accidental knocks or impacts.

4. Temperature Ranges

Maintain operating temperature between -40ºF and 240ºF to ensure accuracy and longevity.

5. Probe Cable Care

Ensure probe cables are not caught or pinched in doors to prevent damage. These are not required for the ambient readings to work.  If an additional precision secondary reading is not needed they can be discarded

6. Gateway Placement

Mount the gateway near the Wi‑Fi access point in a dry, room‑temperature location for reliable connectivity.  More details on gateway connection here.

7. Humidity Protection

In humid environments, keep the sensor’s front metal opening covered to prevent moisture damage.

8. Handling Drops

If the sensor is dropped, immediately reinstall it and press the button to reconnect to the system.

9. Lost Connection

If connection is lost:

  • HOLD the sensor’s ACT button (circled in red above) until a red light is shown (~5 second hold)

  • No readings? If you see your dashboard failing to update after ~20 minutes, email PathSpot support <support@pathspottech.com>
